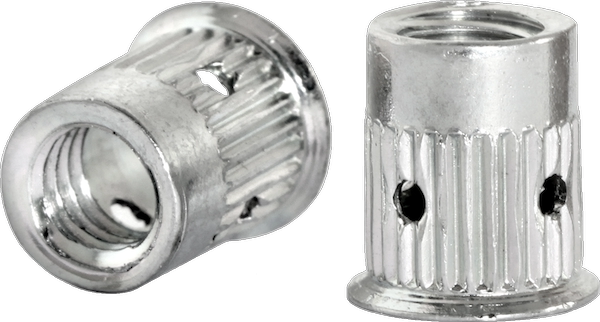

BCT MICRO LOW PROFILE HEAD KNURLED M5 KDMRK-20 A2
Product number
175724
Name
M5 KDMRK-20 A2
Product
Product group
Type
Material
A2

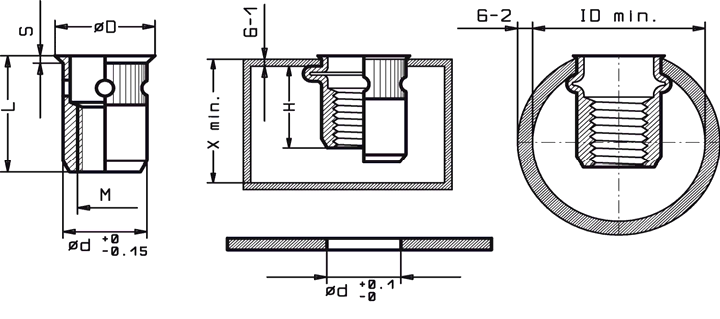

D
9.0
Grip area
0.7 - 2.0
H
ca 5.0
Hole lower tol.
7.0
Hole upper tol.
7.1
Hole diameter
7.0
L
9.0
Max. grip
2.0
Min. grip
0.7
S
0.9
Product Code
KDMRK
d
7.0
d upper tol.
7.0
d lower tol.
6.85
Thread
M5
X
8.4 (7.4)
Grip area Tube
0.5 - 1.0
ID
10.0
