BCT HIGH STRENGTH FLAT HEAD KNURLED M5 KDHPK-25 A2

SKU: 03003980 Categories: , ,

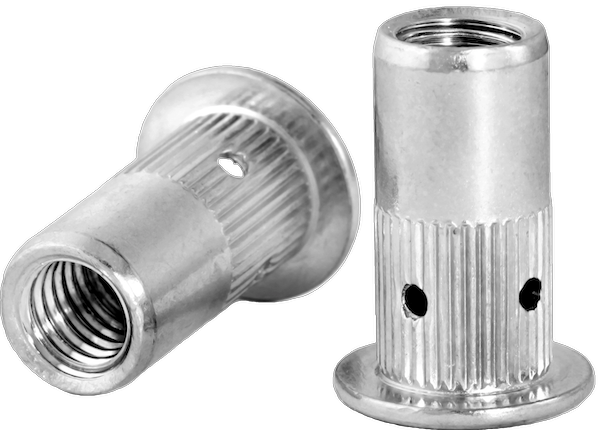

KD-NUTS FLAT HEAD KNURLED Image
KD-NUTS FLAT HEAD KNURLED Drawing
Product number
On request
Name
M5 KDHPK-25 A2
Product
Product group
Type
Material
A2
D
11.0
Grip area
0.7 - 2.5
H
ca 10
Hole lower tol.
8.0
Hole upper tol.
8.1
Hole diameter
8.0
L
15.5
Max. grip
2.5
Min. grip
0.7
S
1.0
Product Code
KDHPK
d
8.0
d upper tol.
8.0
d lower tol.
7.85
Thread
M5

Documents

Frequently asked questions

Why choose Tappex KD-nuts?

Tappex KD-nuts provide maximum pull-out resistance and torque strength. Thanks to their clever design with external barbs, the nut "bites" into the material during installation; as the screw is tightened, the sleeve expands for further stability. They are excellent for use in furniture production or technical plastic components where repetitive assembly is required.

Fast installation: Easily installed by pressing – no tapping required.
High strength: The expansion function ensures the nut stays secure even under load.
Non-destructive: Provides a strong thread without splitting brittle materials.
