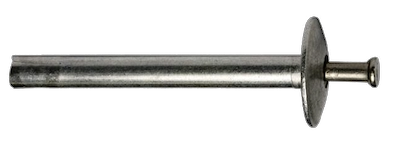

HAMMERDRIVE DOMEHEAD LH 4.8×9 HAL/A2 ELF16
Product number
1552600130
Name
4.8x9 HAL/A2 ELF16
Product
Product group
Type
Material
AL/A2

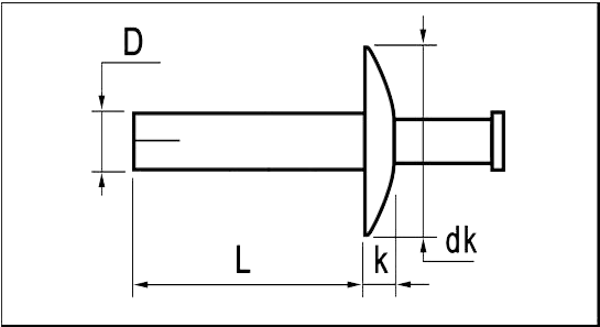

D
4.8
D upper tol.
4.8
D lower tol.
4.65
dk
16.0
dk upper tol.
16.4
dk lower tol.
15.6
dm
n/a
Hole lower tol.
5.3
Hole upper tol.
4.8
Hole diameter
max. 5.3
L
9.0
L upper tol.
9.9
L lower tol.
9.0
Max. grip
7.5
Min. grip
4.5
Shear force (N)
4900
k
2.6
p
n/a
Tensile force (N)
2950
