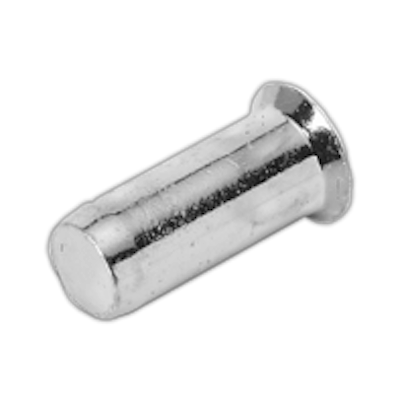

ROUND SHANK COUNTERSUNK HEAD CLOSED END M6 UFX-45 ALU
Product number
160185
Name
M6 UFX-45 ALU
Product
Product group
Type
Material
ALU
D
12.0
D upper tol.
12.0
D lower tol.
11.5
Grip area
1.7 - 4.5
Hole lower tol.
9.0
Hole upper tol.
9.1
Hole diameter
9.0
K
1.5
L
22.0
Max. grip
4.5
Min. grip
1.7
Product Code
UFX
d
9.0
d upper tol.
9.0
d lower tol.
8.85
Thread
M6
