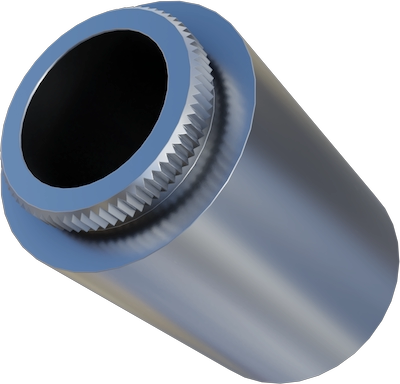

STANDOFFS BROACHING HCBRO M4x6
Product number
On request
Name
HCBRO M4x6
Product
Product group
Type
Material
A2
A
8.74
A upper tol.
8.87
B
6.75
B upper tol.
6.83
B lower tol.
6.67
C max.
1.53
E
13.06
Hole lower tol.
6.4
Hole upper tol.
6.48
Hole diameter
6.4
L
6.0
Min. sheet thickness
1.53
Product Code
HCBRO
Thread
M4
