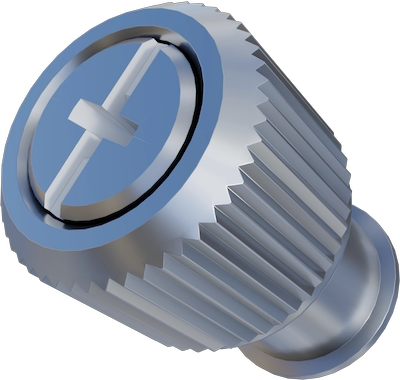

PANEL FASTENERS CAPTIVE HCPF11 M5-0
Product number
On request
Name
HCPF11 M5-0
Product
Product group
Type
Material
StNi/Al/S400
A max.
0.92
B max.
7.9
C
5.84
C upper tol.
6.24
C lower tol.
5.44
E
13.06
Hole lower tol.
7.92
Hole upper tol.
8.0
Hole diameter
7.92
L
16.26
Min. sheet thickness
0.92
Product Code
HCPF11
Thread
M5
