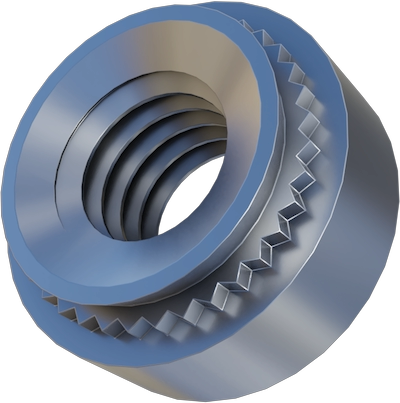

NUTS STANDARD HCN M5-0
Product number
114927
Name
HCN M5-0
Product
Product group
Type
Material
S400
B
8.75
B upper tol.
8.95
B lower tol.
8.55
D max.
6.33
H
2.0
H upper tol.
2.25
H lower tol.
1.75
Hole lower tol.
6.35
Hole upper tol.
6.43
Hole diameter
6.35
Min. sheet thickness
0.8
Product Code
HCN
h max.
0.77
Thread
M5
