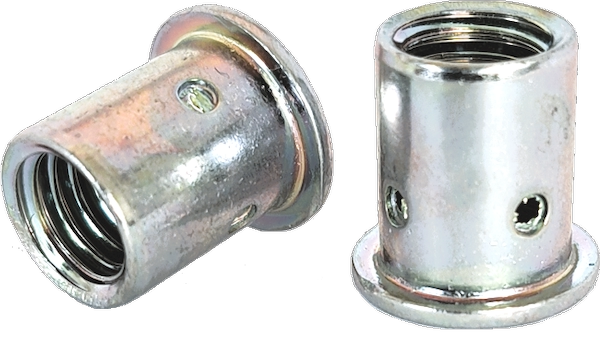

BCT MICRO FLAT HEAD M4 KDMP-25 FZB
Product number
170602
Name
M4 KDMP-25 FZB
Product
Product group
Type
Material
FZB

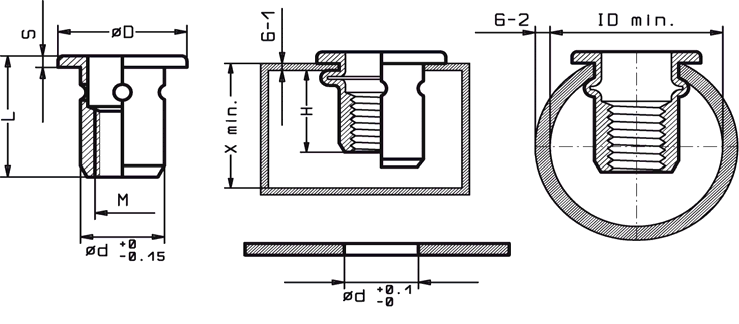

D
8.0
Grip area
1.5 - 2.5
H
ca 4.2
Hole lower tol.
6.0
Hole upper tol.
6.1
Hole diameter
6.0
L
8.7
Max. grip
2.5
Min. grip
1.5
S
0.7
Product Code
KDMP
d
6.0
d upper tol.
6.0
d lower tol.
5.85
Thread
M4
X
7.9 (7.4)
Grip area Tube
0.8 - 1.5
ID
8.5
