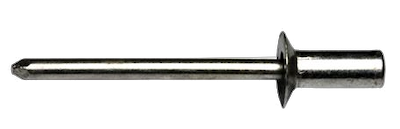

CLOSED END COUNTERSUNK 4.8×17 TAL/AL C

SKU: 01006140 Categories: , ,


Product number
1152600311
Name
4.8x17 TAL/AL C
Product
Product group
Type
Material
AL/AL

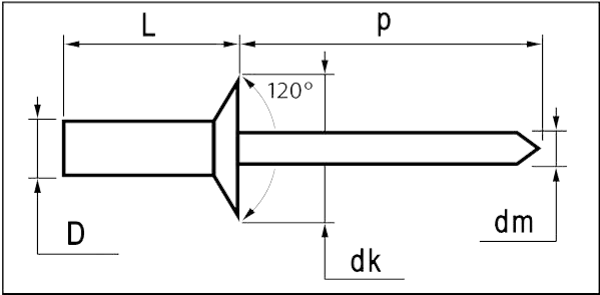

D
4.8
D upper tol.
4.88
D lower tol.
4.72
dk
9.0
dk upper tol.
9.0
dk lower tol.
8.5
dm
2.65
Hole lower tol.
4.9
Hole upper tol.
5
Hole diameter
4.9
L
17.0
L upper tol.
17.9
L lower tol.
17.0
Max. grip
12.0
Min. grip
10.5
Shear force (N)
900
k
2.0
p
27
Tensile force (N)
1120
