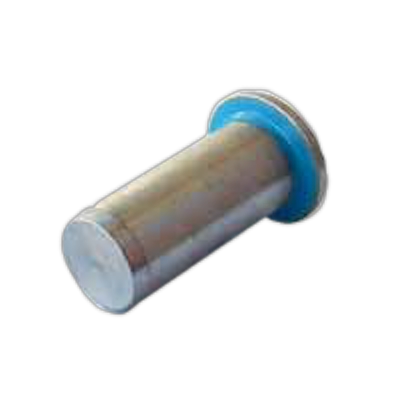

ROUND SHANK FLAT HEAD CLOSED END IP67 M4 DPX-15 A4
Product number
On request
Name
M4 DPX-15 A4
Product
Product group
Type
Material
A4
D
9.0
D upper tol.
9.35
D lower tol.
8.65
Grip area
0.5 - 1.5
Hole lower tol.
6.0
Hole upper tol.
6.1
Hole diameter*
6.0
L
15.0
Max. grip
1.5
Min. grip
0.5
Product Code
DPX
d
6.0
d upper tol.
6.0
d lower tol.
5.85
Thread
M4
Notes
IP67.
Temp.range: -40 / +120°C
Seeling capacity: >150 bar
