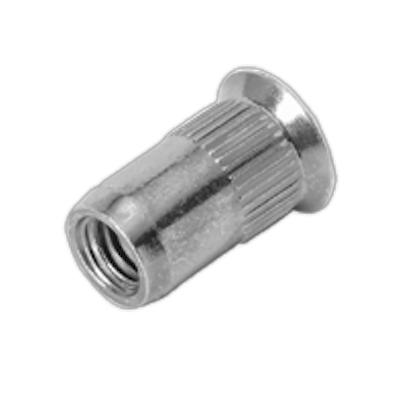

ROUND SHANK COUNTERSUNK HEAD OPEN END SPLINED M8 UFO-65 RS FZB
Product number
160568
Name
M8 UFO-65 RS FZB
Product
Product group
Type
Material
FZB
D
14.0
D upper tol.
14.0
D lower tol.
13.5
Grip area
4.5 - 6.5
Hole lower tol.
11.5
Hole upper tol.
11.6
Hole diameter
11.5
K
1.5
L
18.5
Max. grip
6.5
Min. grip
4.5
Product Code
UFO-KN, UFO-RS
d
11.4
d upper tol.
11.4
d lower tol.
11.25
Thread
M8
